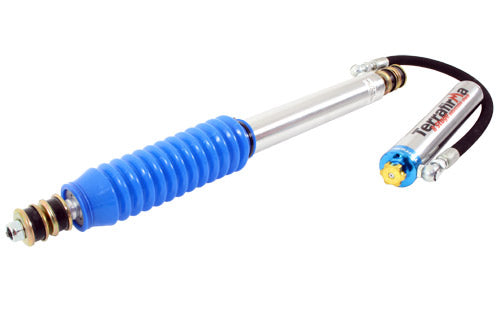

Remote Reservoir Front Shock Absorver - +2" - +5cms

New Terrafirma shock absorber with separate bottle that incorporates all the virtues of its previous predecessor with a 20mm thick shaft, improved Viton oil seal withstanding higher temperatures, metal hose and insulation system against dust and dirt.

The new +2" separate bottle shock is built with a monotube system that increases development and oil capacity. The new bottle length is increased due to the shock's 8-position compression adjustment system to allow the rider to adjust the characteristics of the shock absorber according to the driving style and the load capacity of the vehicle. The nitrogen pressure is now set to allow a high development of the shock absorber (uncomplicated nitrogen valve).

This is a highly developed model to mount directly on the original supports of the Land Rover Defender, Discovery1 and Range Rover Classic models.

Specifications

52mm diameter zinc plated shock absorber body and bottle body
20mm diameter chrome double shaft
46mm piston diameter
Front with a length of 605mm open and 360mm closed
Rear with a length of 613mm open and 383mm closed


Reinforced welds on the eyelet and tang ends
High pressure nitrogen charged
Multi position valve
High temperature fluid
Silentblock measurements the same as the original ones for easy replacement
Blue and gold anodized aluminum completes the look of the new shock.
